Robotic coating line for underframes of railway wagons

• Client:

  J.R.G. s.r.o.
• Year:

  2019
• Location:

  Poprad (SK)
• Technical specification:

  • Product dimension limits:
  • 2370 × 800 × 3250 mm (L × W × H)
  • Capacity of the beam: 2000 kg/ beam
  • Operational cycle time: 12 min/ beam

  ---

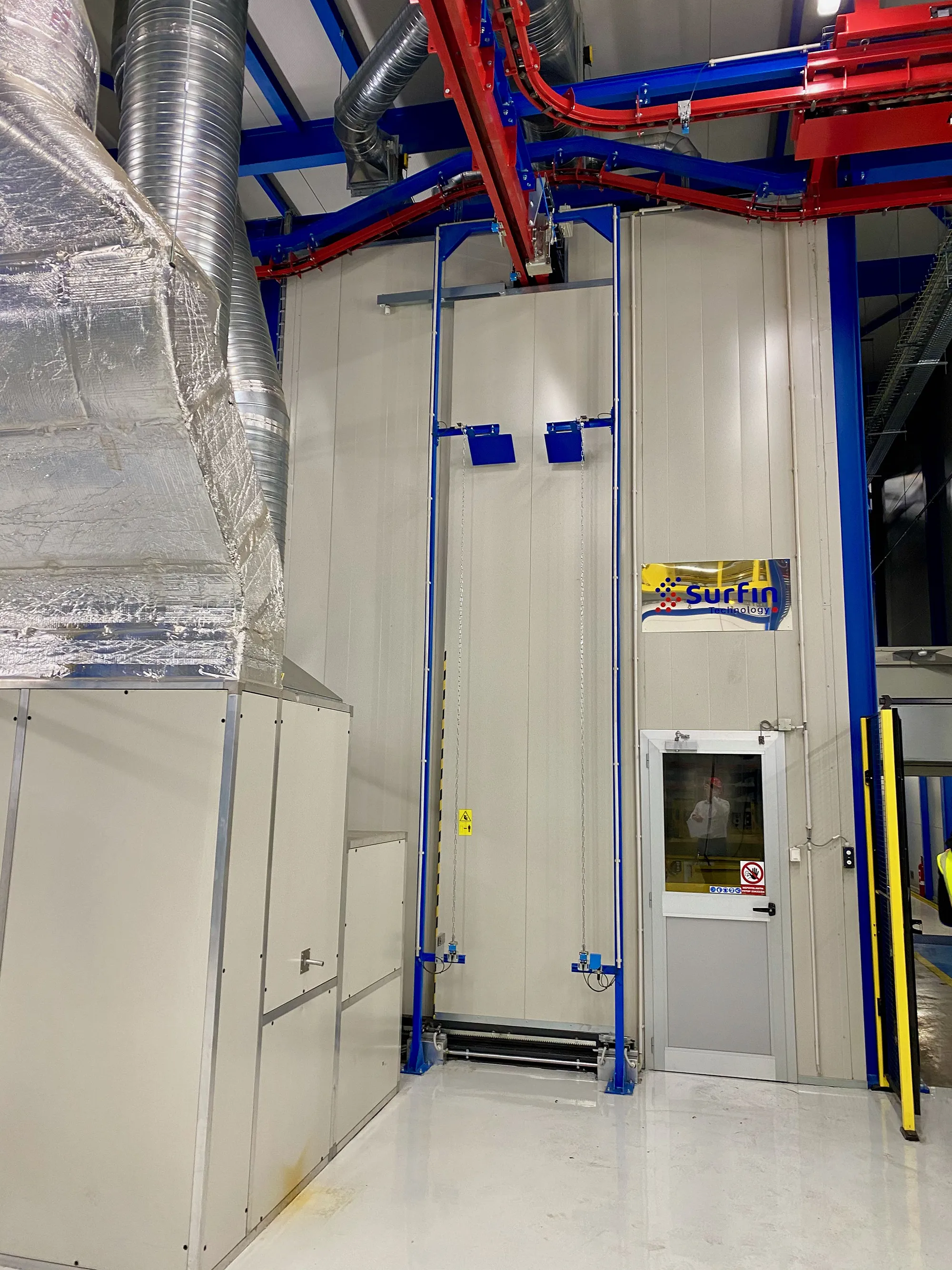

  • Cleaning booth 4000 × 4000 × 5500 mm (L × W × H)
  • Manual liquid paint application booth
  • 7000 × 4000 × 5500 mm (L × W × H)
  • Robot-operated liquid paint application booth
  • 8000 × 5000 × 4700 mm (L × W × H)
  • Flash-off zone
  • Drying zone

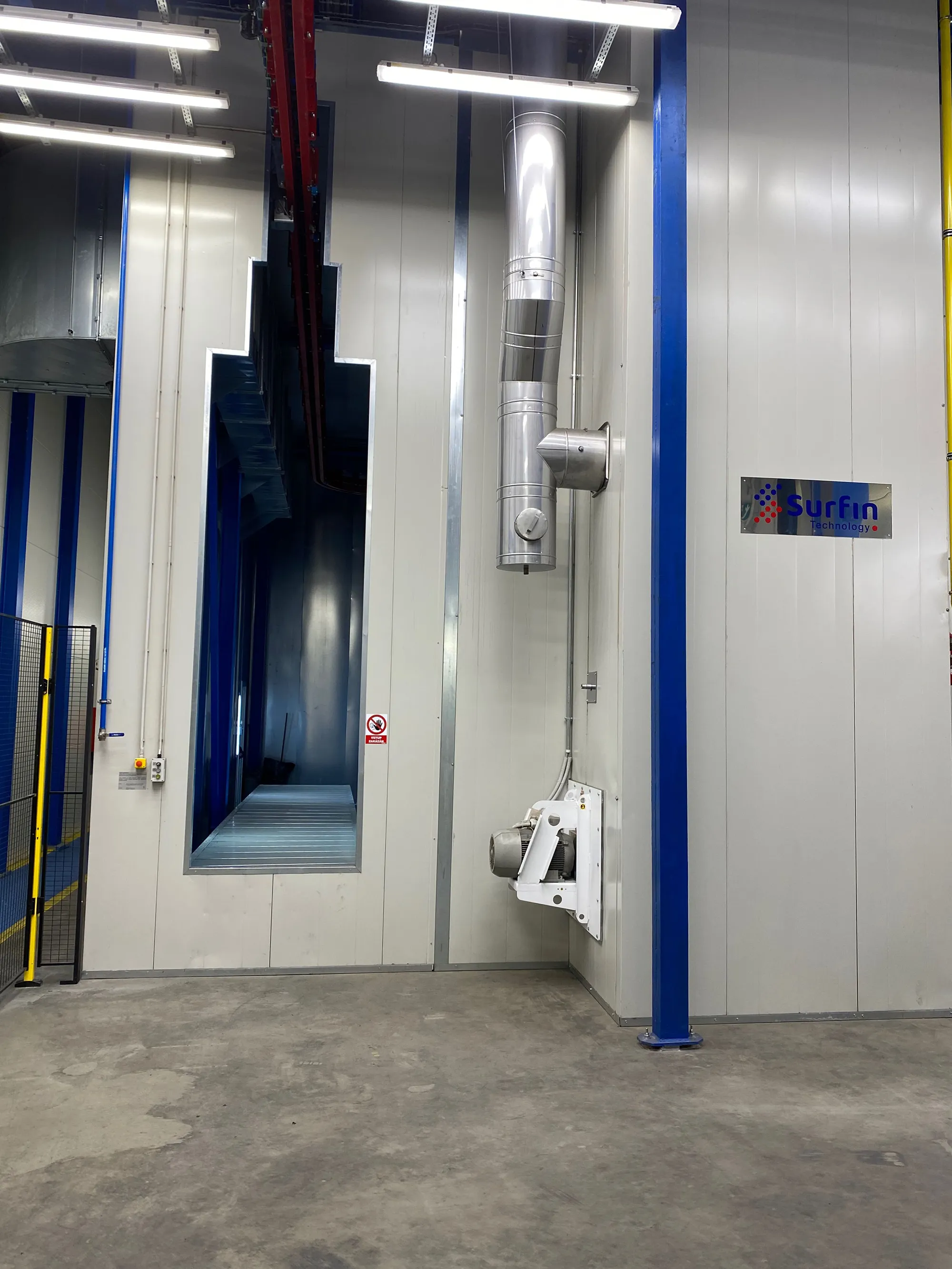

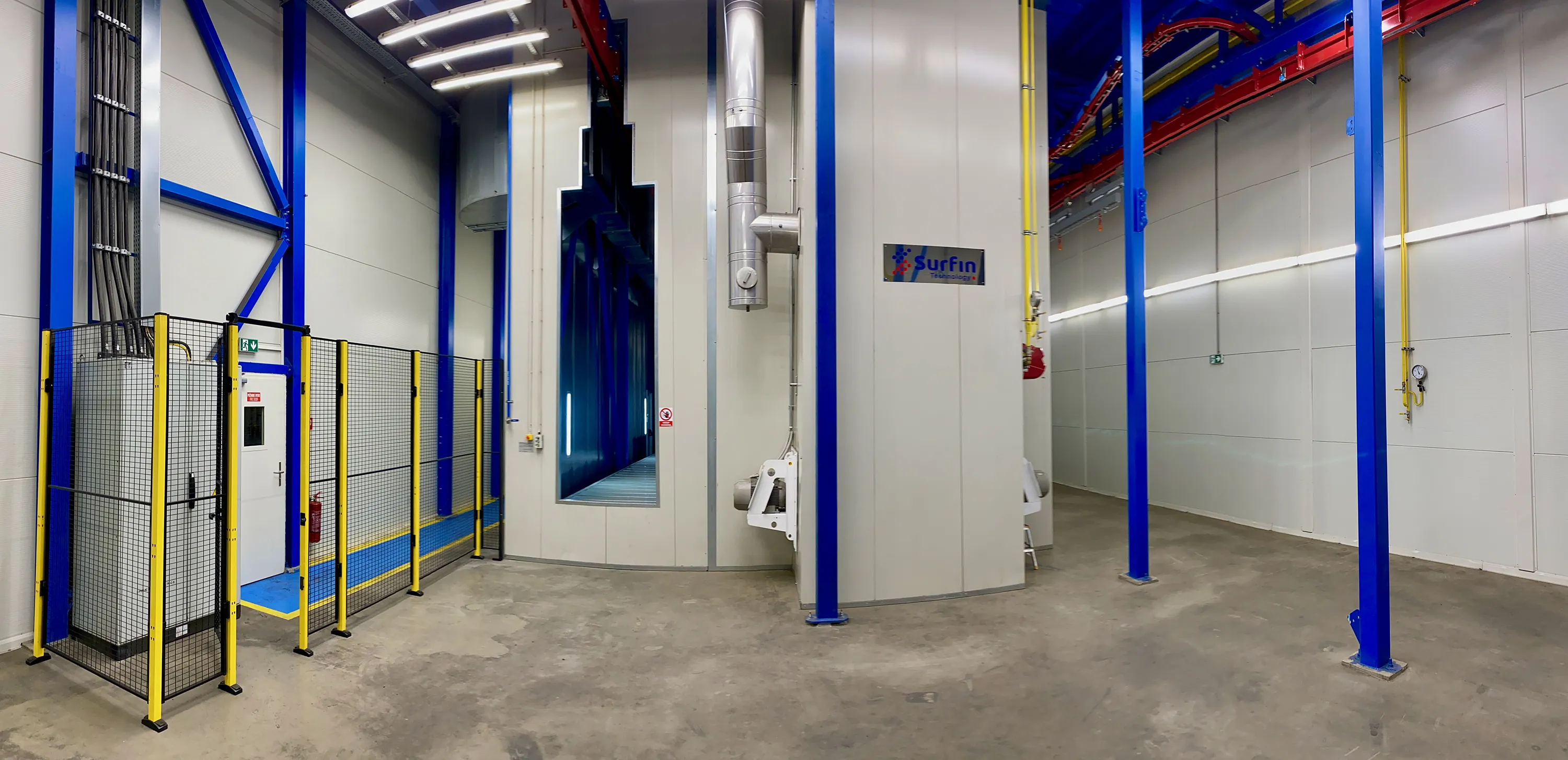

  • Cooling zone

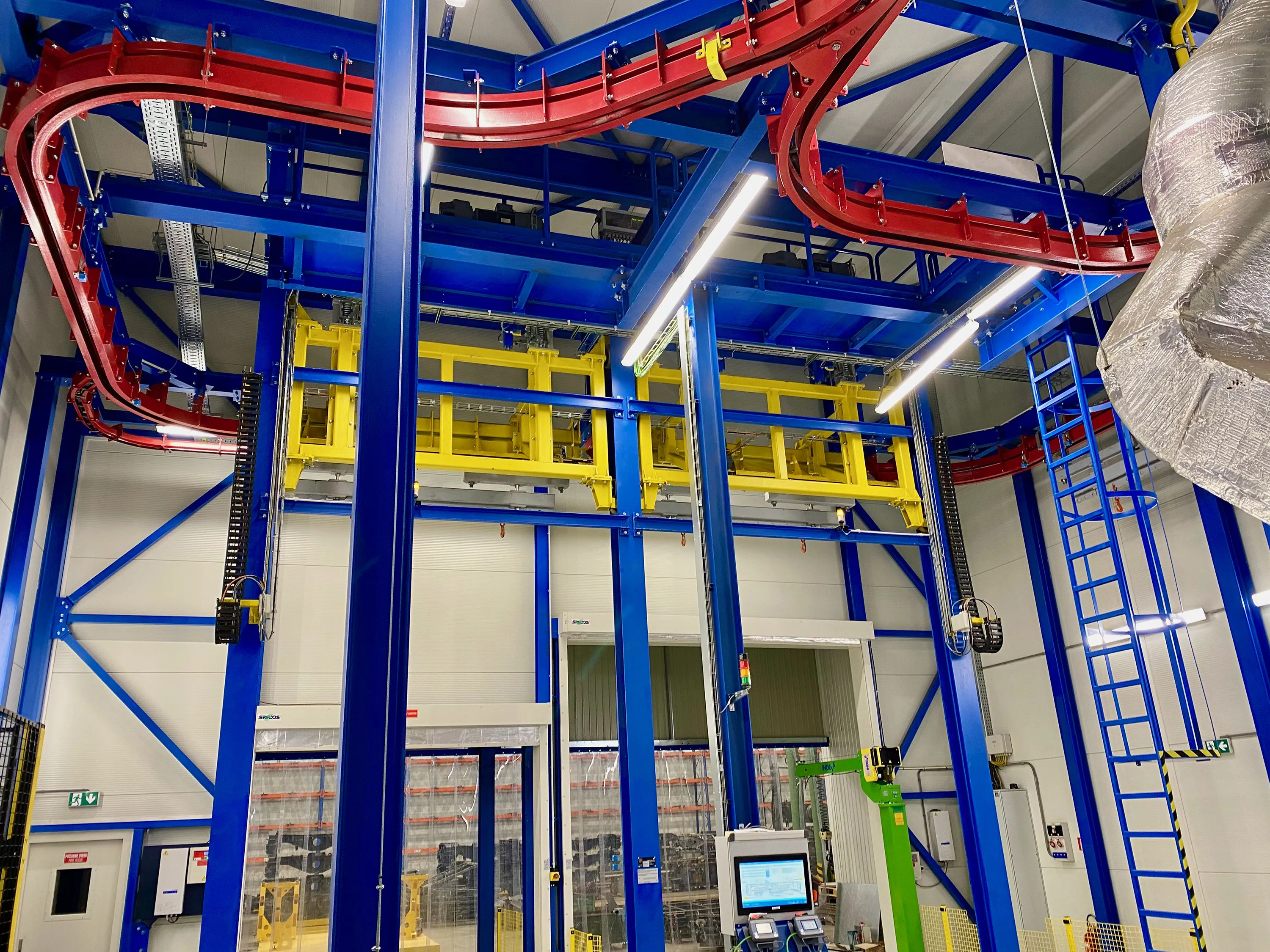

  • Power & Free conveyor system

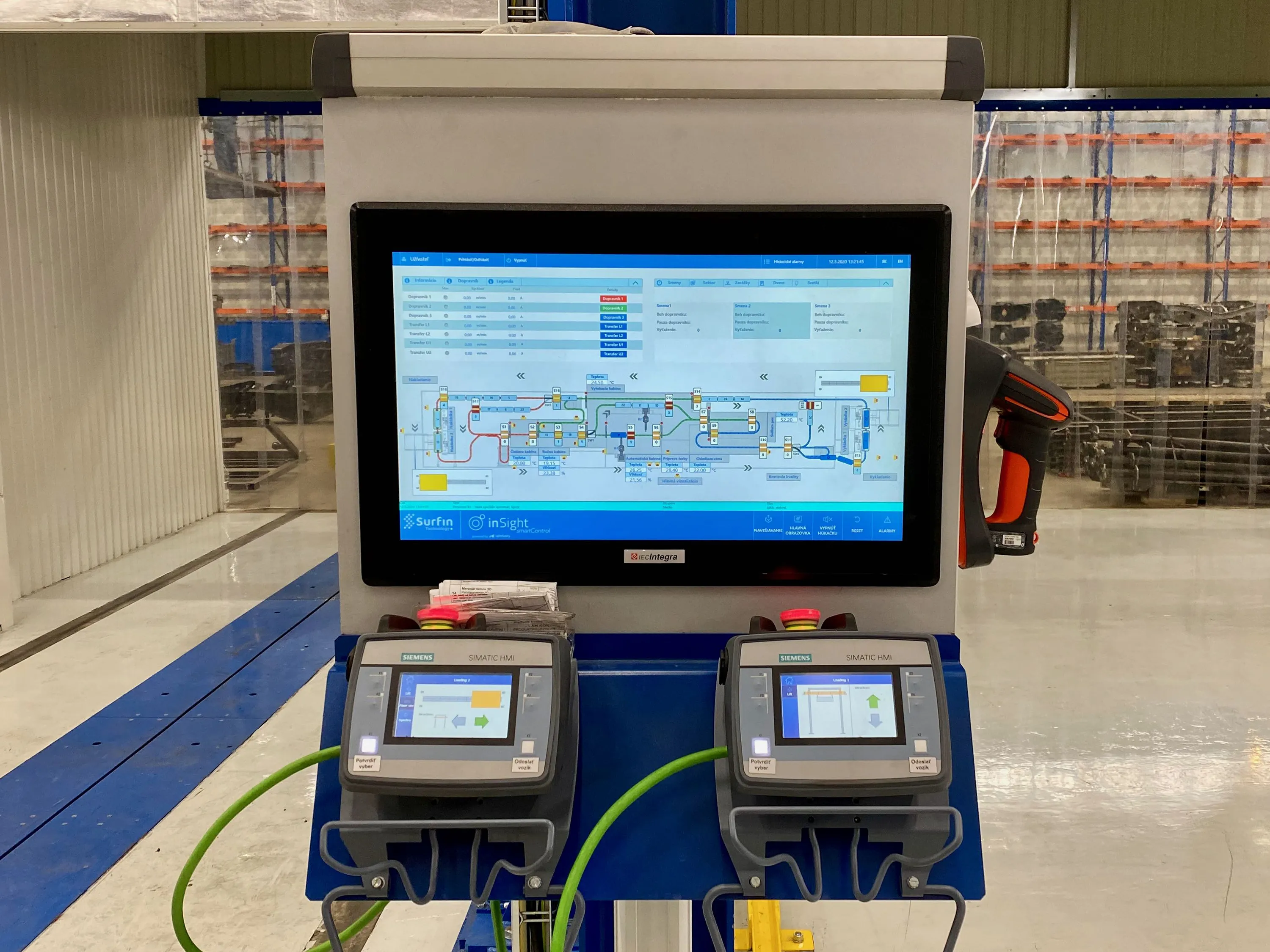

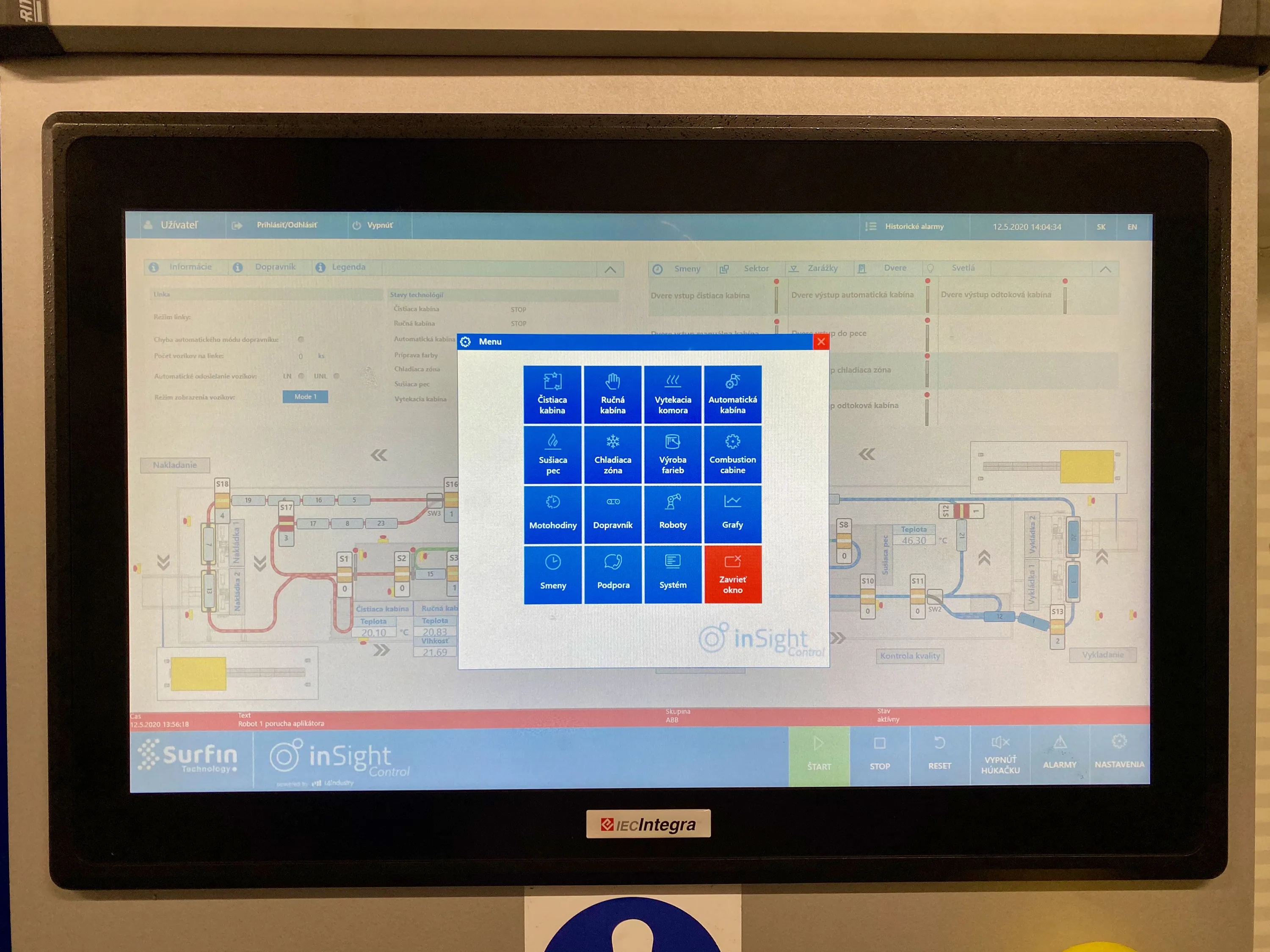

  • InSight Control system
  • 2× ABB spray robots
  • Liquid paint distribution system
  • Liquid paint manual application equipment
  • Liquid paint mixing room
  • Liquid paint storeroom
