Continuous painting line for steel flue pipe manufacturer

  • Client:
    1CSC, a.s.
  • Year:
    2022
  • Technical specification:

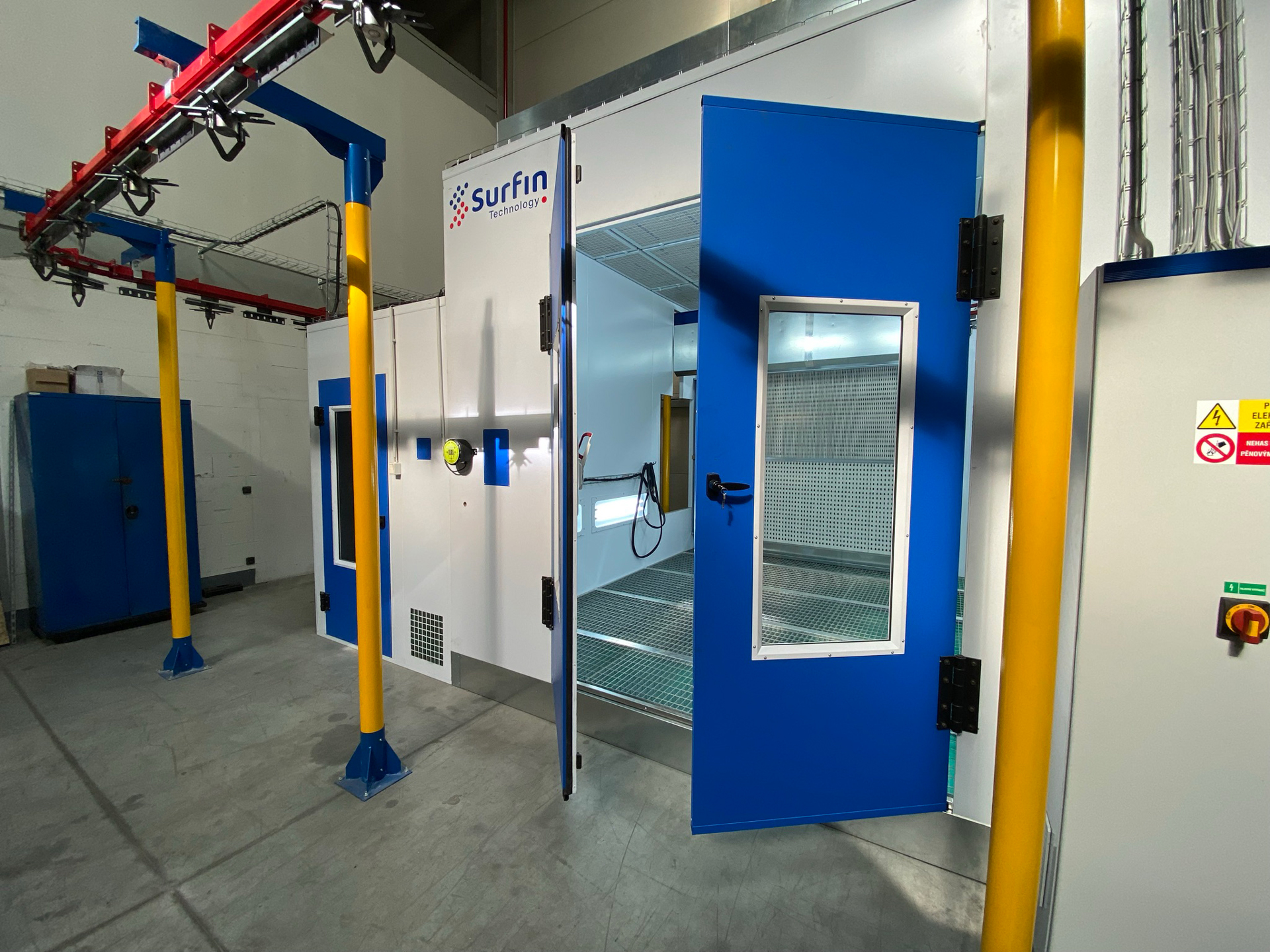

    • Liquid paint application booth and flash-off booth

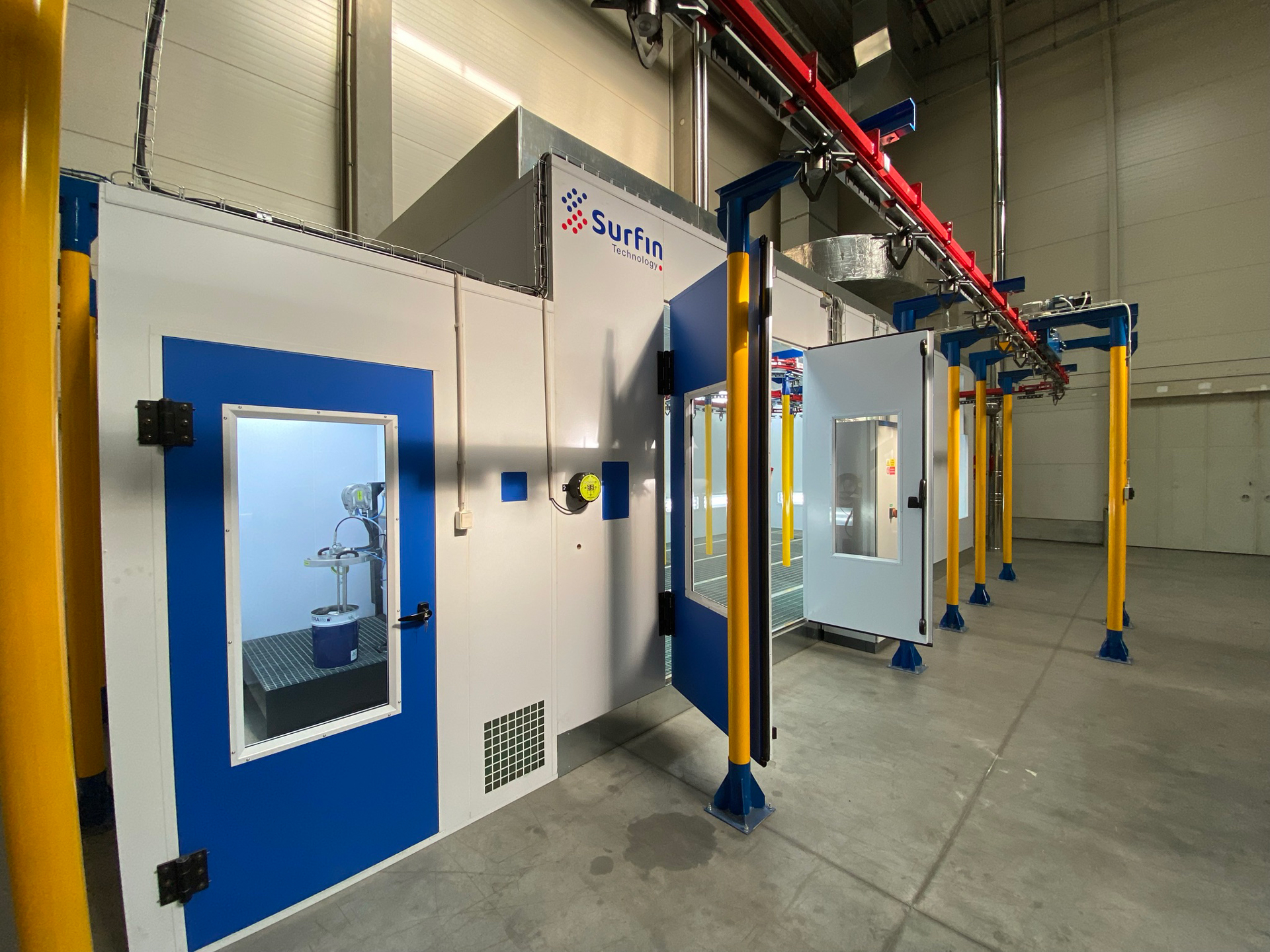

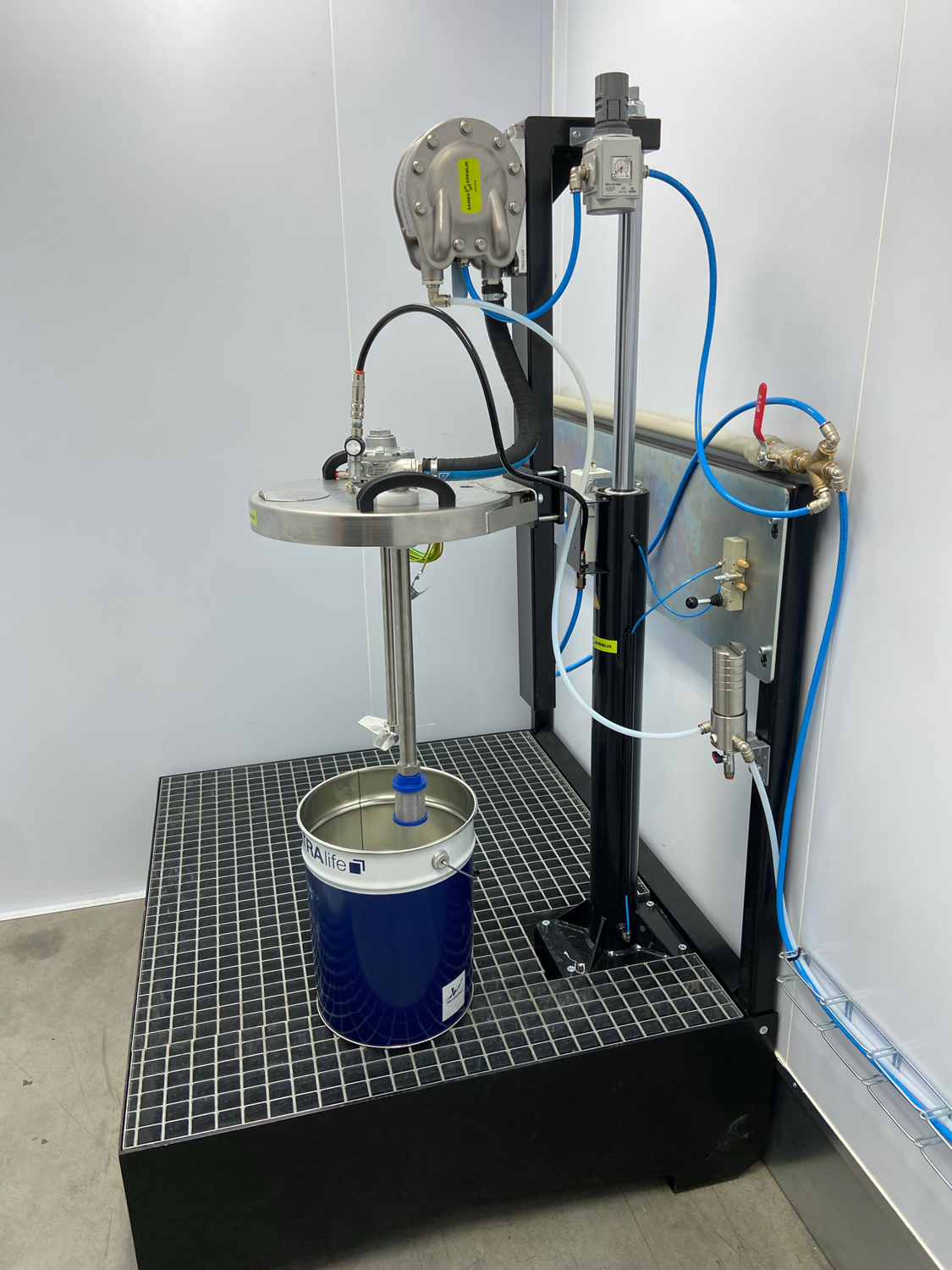

    • Paint mixing station

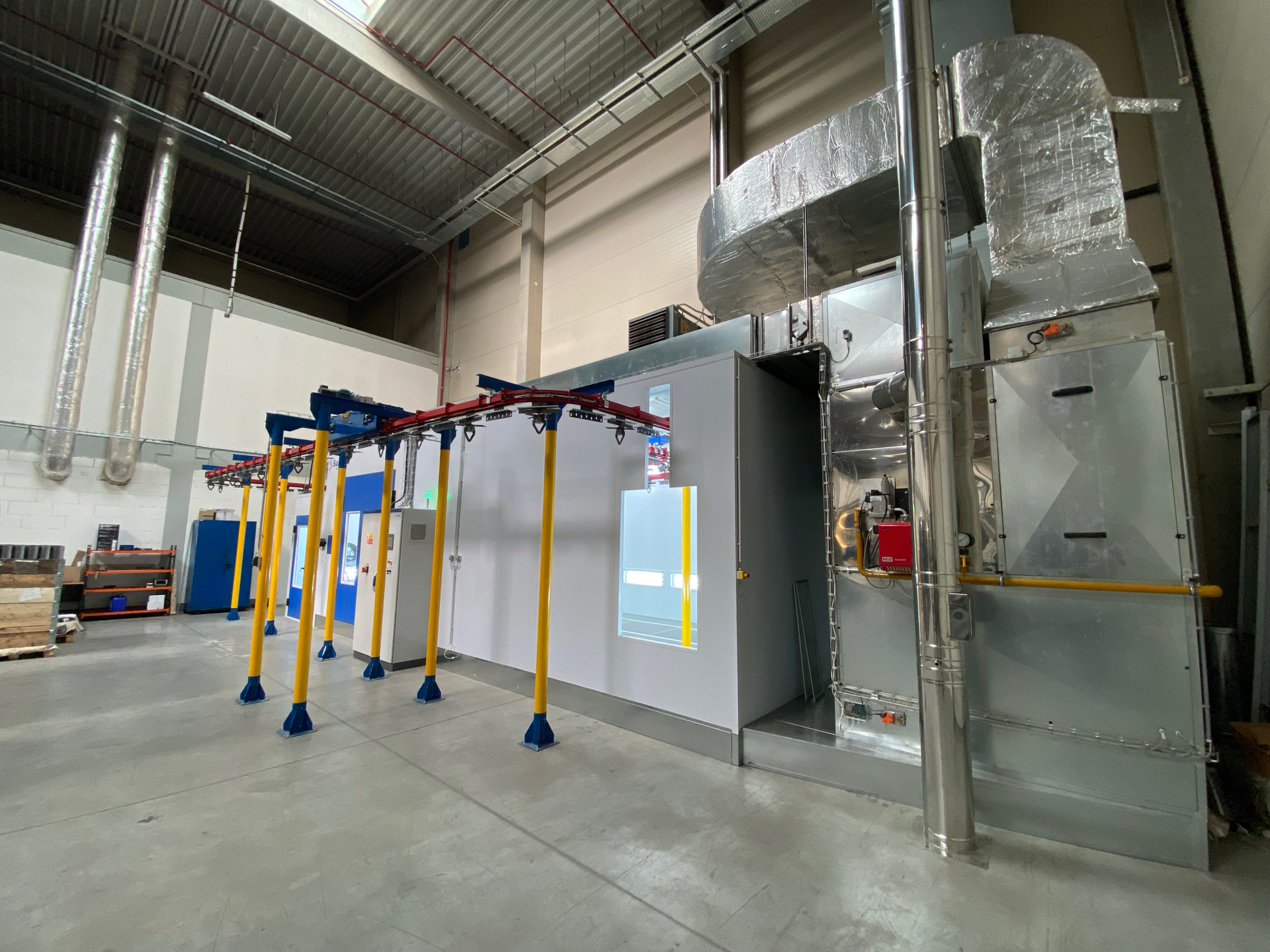

    • Propane heating from external propane tank
    • Electrostatic application of liquid paint

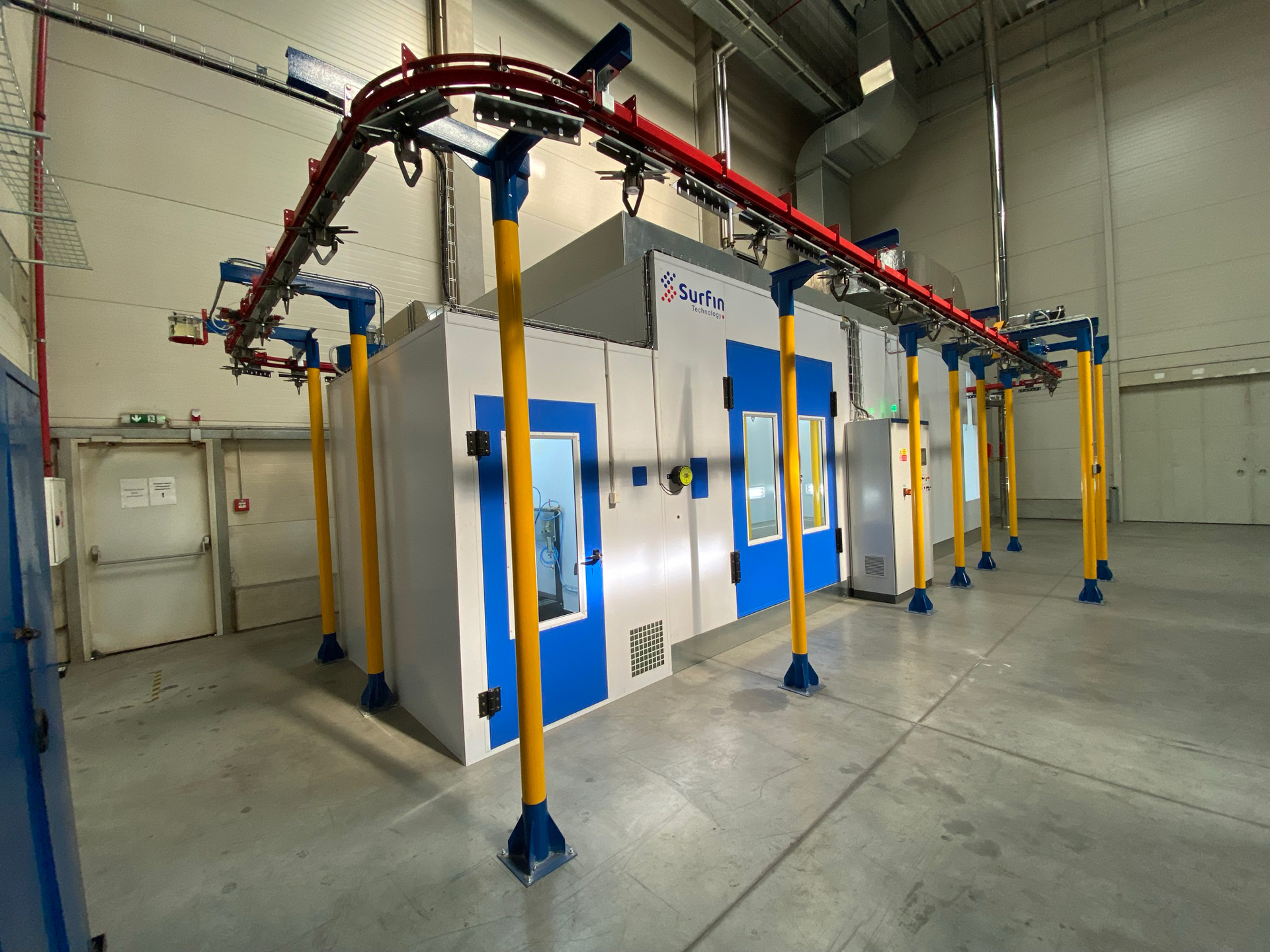

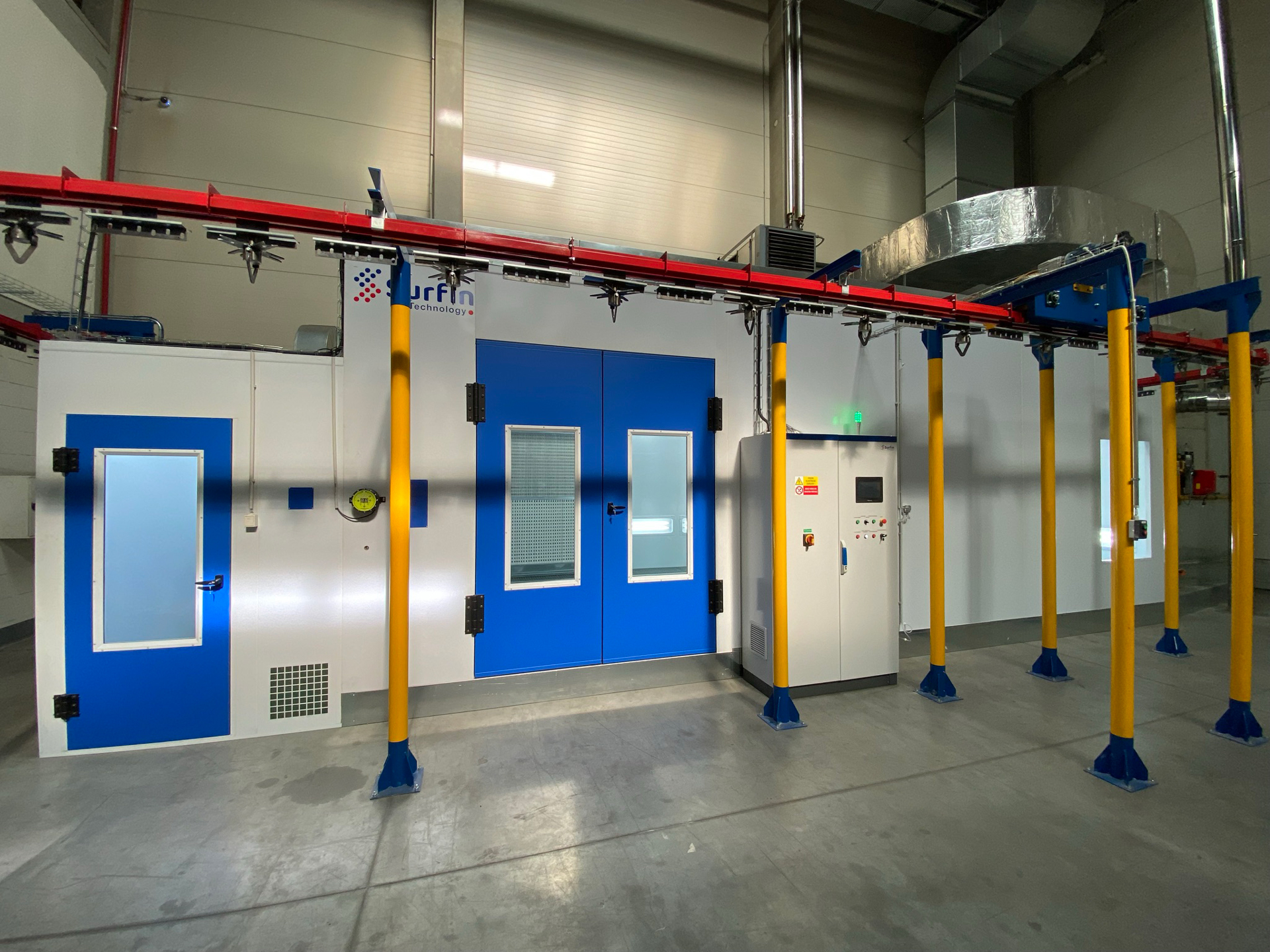

    • Continuous conveyor with 360° swivel hooks
    • Automated change of positioning of the part before painting
    • PLC control touch panel
    • Frequency converter for air-handling control depending on the filter contamination degree
    • Preparation booth and robot implementation control system

Project description

1CSC, a.s., a renowned manufacturer of flue ducts, approached us to design a project of a semi-automatic liquid painting line. Due to the round shape of the flues, electrostatic application was used. Due to the lack of a local gas linean external propane tank was installed. The spray booth is already set to be able to carry painting robots should it be required in the future.

Celou technologii jsme zajistili na klíč se stavebním povolením.

What's in it?

  • Decrease of time spent on manipulation with the product thanks to a continuous overhead conveyor and an automated turn of the beam.
  • Material efficiency - reduction of paint spent on oversprays thanks to electrostatic application
  • Ready to be extended by implementation of robots in case of production increase.
